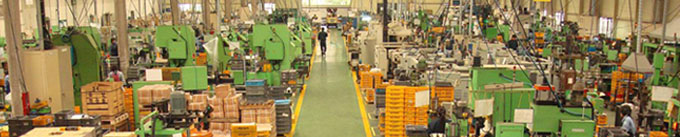

Manufacture Facilities/Production Site

Home > Technology >
Manufacture Facilities/Production Site

Correcting and stabilizing handling characteristics

Improving vehicle safety has always been one of the key objectives of automobile design. As a leading steering and chassis
technology specialist, SAMYUNG is planning to continue promoting future developments in safety.

Correcting and stabilizing handling characteristics

From the development of new patents to series production, SAMYUNG has set the pace in steering and chassis technology for decades. Here, you will find more information and highlights about SAMYUNG products.

IBJ Assembly Process

- Inner Ball Joint Assembly Process

  • Housing

    HOUSING

  • OD Maching

    OD Maching

  • ID Maching

    ID Maching

  • Thread_rolling

    Thread Rolling

  • Housing2

arrow

arrow

  • TIE ROD

    TIE ROD

  • Neck Machining

    Neck Machining

  • Turning & Burnishing

    Turning & Burnishing

  • Neck & Burnishing

    Neck & Burnishing

  • tierod2

arrow

arrow

  • ASSEMBLY

    ASSEMBLY

  • Assembly

    Assembly

  • Torgue test

    Torgue test

  • ASSEMBLY

arrow

arrow

OBJ Assembly Process

- Outer Ball Joint Assembly Process

  • Socket

    SOCKET

  • ID Maching

    ID Maching

  • OID Maching

    OID Maching

  • Drilling&Tapping

    Drilling&Tapping

  • socket2

arrow

arrow

  • STUD BALL

    STUD BALL

  • Neck Machining

    Neck Machining

  • Turning & Burnishing

    Turning & Burnishing

  • Neck & Burnishing

    Neck & Burnishing

  • STUD BALL

arrow

arrow

  • Assembly

    ASSEMBLY

  • Assembly

    Assembly

  • Torque Test

    Torque Test

  • Assembly

arrow

arrow

SUB Assembly Process

- ROD ASM, Inner, Outer Boot ETC Assembly Process

  • OUTER

    OUTER

  • INNER

    INNER

  • BOOT ETC

    BOOT ETC

  • Assembly

    Assembly

  • Test

    Test

  • assembly_05

Samyung technology offers performance and quality in products and services wherever you can find Samyung components and systems. Our products are often concealed in vehicles built by the world's leading manufacturers, but you can expect state-of the art technology, performance, durability, and economical efficiency that result in safety, comfort, and easy handling.

Test Machine

  • Torque Tester
  • Torque Tester

    Servo Motor PC Control
    SWING SPEED: MAX 30 rpm
    SWING ANGLE: ±35℃
    Rotation SPEED: MAX 60 rpm
    TORQUE CELL RANGE: 5kgf-m

  • Lash Tester
  • Lash Tester

    Axial / Radial Lash
    TEST LOAD
    MAX ±1000kgf * 0.001mm

  • UTM
  • UTM

    Tension, Compression, Bending
    Servo Motor PC Control
    TEST LOAD MAX ±30,000kgf

  • 4Axial Durability Tester
  • 4Axial Durability Tester

    TEST LOAD
    RADIAL: ±50kN*20Hz
    AXIAL: ±50kN*20Hz
    Stroke: ±25mm
    TEST SPEED
    Oscillation: ±30*1Hz

  • 5Axial Durability Tester
  • 5Axial Durability Tester

    TEST LOAD
    RADIAL: ±30kN*20Hz
    AXIAL: ±30kN*20Hz
    Stroke: ±25mm
    TEST SPEED
    Oscillation: ±30*1Hz
    Rotation: ±40*1Hz
    Chamber: ±40℃~±150℃
    Spray Device:
    -30℃*10L/MIN+10bar

  • Dust Cover Durability Tester
  • Dust Cover Durability Tester

    Servo Hydraulic PC Control
    Oscillation: ±25*6Hz
    Rotation: ±35*0.5Hz
    Chamber: -45℃~150℃
    Spray Device: -30℃*10lpm+5bar

  • Fatigue Tester
  • Fatigue Tester

    TEST LOAD
    Stroke: ±50mm
    TEST SPEED: 20Hz

  • Solt Spray Test
  • Solt Spray Test

    ISO CASS
    800*400

  • 3D Measuring
  • 3D Measuring

    RV A800
    X: 800mm
    Y: 400mm
    Z: 350mm

  • KariFischer Measuring
  • KariFischer Measuring

    Determination
    Range: 0.01~100%
    Burette Resolution: 1/10000

    252g*0.0001g

  • Shape Measuring
  • Shape Measuring

    X: 100mm
    Y: 50mm
    Z: 0.0001

  • Metallurgical Microscope
  • Metallurgical Microscope

    X10~X1000

  • Surface Roughness Measuring
  • Surface Roughness Measuring

    Ra
    Rmax
    Rz

  • Vickers Hardness Tester
  • Vickers Hardness Tester

    Hv Load: 10g~1000g

Test Machine
Name Spec. Q’ty
C.N.C Lathe Puma 10 etc 80
Vertical Machining Center ACE V4.5 46.5HP etc 16
Press 60 TON etc 12
Hydraulic press 30 TON etc 10
U-Drilling M/C 2000 R.P.M etc 20
Drilling M/C Exclusive Spec. 20
Horizontal Drilling M/C Exclusive Spec. 8
3-Axial Drilling M/C Φ 40 250mm etc 4
IBJ Ass’y LINE CAULKING 10
OBJ Ass’Y LINE SWAGING 12
Multi-Axial Drilling M/C 2.5HP etc 8
AUTO PIN DRILL M/C 4 Axis 6
Tapping M/C, Index Type Exclusive 20HP etc 10
Automatic Robot M/C 15Kg 20
3-Axial Tapping M/C Cut end, drill, tapping 10
Spherometer FSG-3R etc 10
AAuto Spherometer Auto rotation type 14
Auto Neck Processing M/C SHM 2006 12
Rolling M/C DHR-15 etc 8
Common Lathe 8, 520*1500DHL 8
Milling M/C Integrated #2 etc 6
Play Tester 1ton*0.001㎛ 2
Drop Impact Tester 50kg 2
Test Machine
Name Spec. Q’ty
Aging M/C 100℃ 2
High-Frequent Heat-Treatment 50KW etc 4
Single Purpose Lathe FS 227T etc 58
PROJECTOR PROFILE X 10 2
Multiuse Material Tester 30 TON 2
Rockwell Hardness Tester Hrc 150kgf 4
Shore Hardness Tester 140Hs 2
Micro Vickers Hardness Tester MVKE 1000kgf 2
Brinell Hardness Tester 3000kgf 2
Roughness Tester SUF TEST 402~178 2
Metallurgical Microscope X1000 2
Specimen Grinder 300RPM 2
Mounting Press M/C 1000kgf 1
Temperature/Humidity Recorder - 2
Surface Thermometer TC-1100 6-Grade 2
Thermo-Hygrostat 20˚C*55% 2
Single Color Sight Source 55-03-E01 2
Salt-Water Spray Tester ISO CASS 2
B/J Abrasion Resistance Tester 5ton*25mm 2
S/B Fatigue Resistance Tester 5ton*20Hz 2
Cold-Resistance Tester 150´C ~ -50´C 2
B/J Rubber Bush Durability Tester DEJ-100 2
3-D Measuring Instrument PVA 800 2
